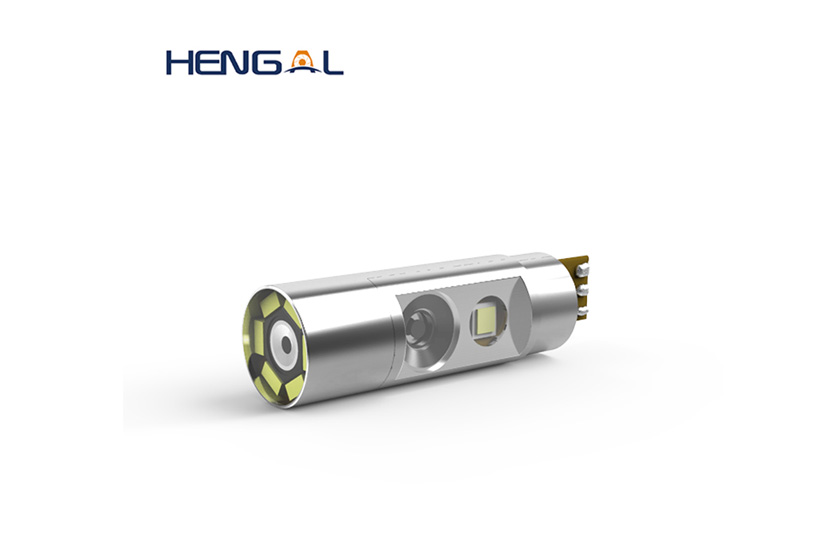

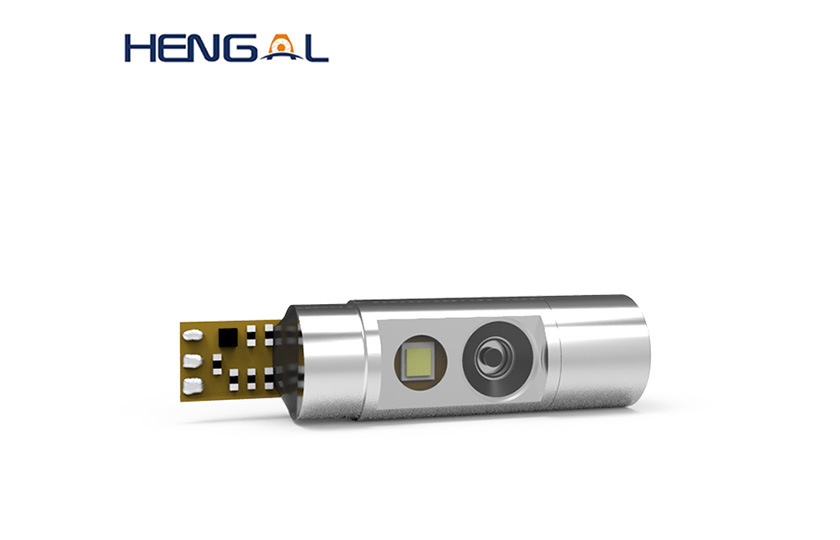

6mm dual-lens camera
|
ITEM |
DESCRIPTION |
|
Camera Model NO |
03D6017 |
|
Camera Diameter |
6mm |
|
6mmx17mm |
|
|
Camera Direction |
Front+ side view ( 0°+90 °) |
|
Tube material |
Nickel Plated Brass |
|
Image device |
1/7.5” High Color Sensor |
|
Pixel Size |
3um x 3um |
|
Effective Picture Element |
640(H)X480(V) |
|
AGC |
Auto |
|
AES |
Auto |
|
AWB |
Auto |
|
Dynamic Range |
70.4 dB @ 8x gain |
|
S/N Ratio |
38dB |
|
Construction |
2P + IR ( front) 2P + IR ( side) |
|
Lens F/NO |
F3.0 ( front) F 3.0 ( side) |
|
Field of Viewing ( FOV ) |
93° ( side) |
|
Focus Range |
10mm – 100mm ( front) 4mm – 50mm ( side) |
|
Light Source |
6pcs High Luminous White LED ( front) 1pcs High Luminous White LED (side) |
|
Power input |
DC 3.3V |
|
Temperature detection |
AD signal wire and 10K Thermistor inside |
|
Switch the front and side cameras |
SW signal wire was pulled down |
|
Output format |
Digital signal output |
|
Support for decoding boards |
USB decoding board and 5-inch screen decoding board |
|
Power Consumption |
TBD |
|
Operating Temperature |
-30°C to +70°C |
|
Operating Humidity |
30%~90%Rh |
|
Length of connectable wire |
Up to 5 Meters 7-core Teflon wire |
