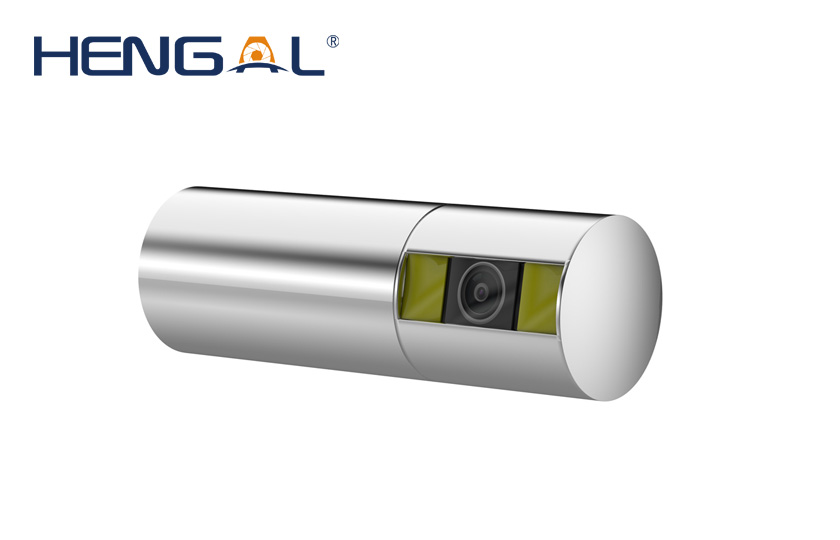

3.0mm side view camera thumb

3.0mm side view camera

3.0mm side view camera

Description





ITEM

DESCRIPTION

Camera Model NO

02A3001

Camera Diameter

3.0 mm

Camera Module Dimension

3mmx11mm

Camera Direction

Side view ( 90°)

Tube material

Stainless steel

Image device

1/18” High Color Sensor

Pixel Size

1.75µm x 1.75µm

Effective Picture Element

400(H)X400(V)

AGC

Auto

AES

Auto

AWB

Auto

Dynamic Range

65.8dB @ 4x gain

S/N Ratio

36.8dB

Lens Construction

3G + IR

Lens F/NO

F5.0

Field of Viewing ( FOV )

120°

Focus Range

5mm – 50mm

Light Source

2pcs High Luminous White LED

Power input

DC 3.3V

Output format

Analog signal output

Support for decoding boards

USB decoding board or 5-inch screen decoding board

Power Consumption

TBD

Operating Temperature

-20°C to +70°C

Operating Humidity

30%~90%Rh

Length of connectable wire

Up to 4 Meters 6-core Teflon wire
