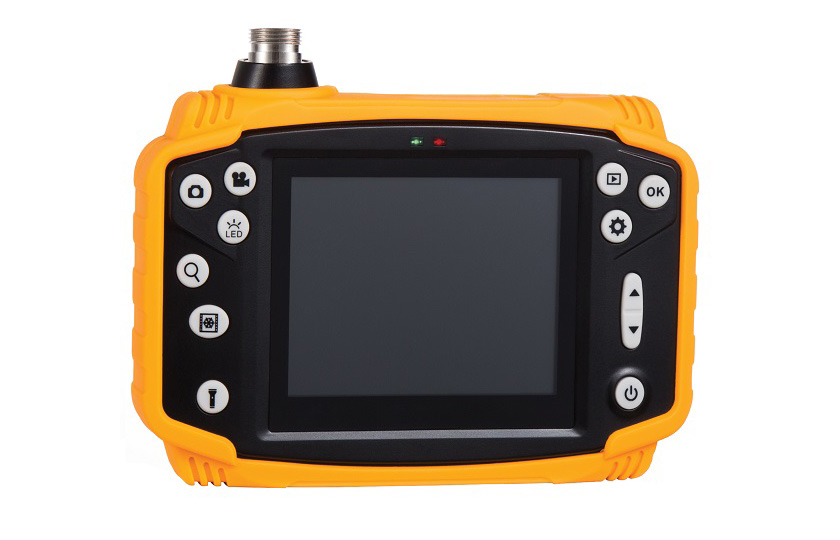

• Clear viewing on 3.5'' LCD monitor with QVGA resolution

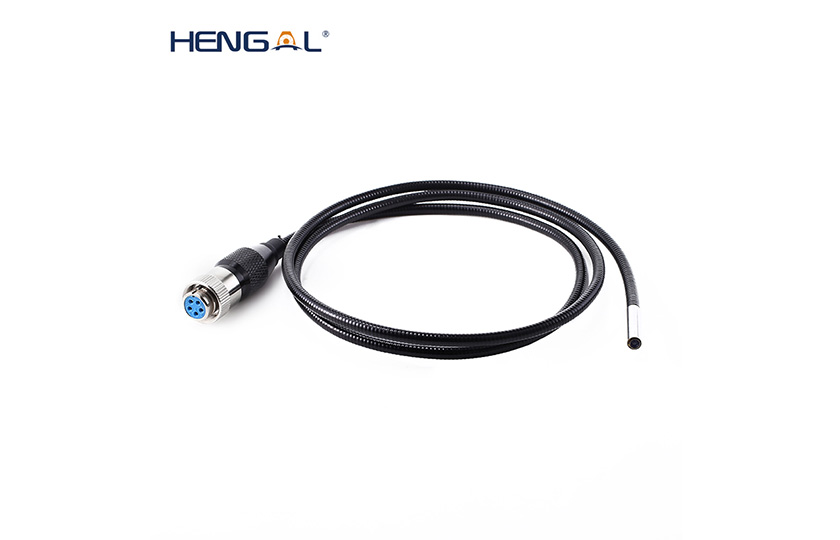

• 3.7mm/4.5mm/6mm/9mm diameter camera head; 1 meter long soft metal probe with 640 x 480 pixel (VGA) resolution camera
• Camera lighting—SIX white LED light provide glare-free lighting in any environment
• Probe and stainless steel camera head are IP67 water, oil and dust-proof.
• Powered by 18650 Li-Ion Battery (2600mAh) continuous operation about 7 hours
• The scientific button design make it easier during the operating.
This video borescope is a useful tool for professionals who need to inspect inaccessible areas for defects without harming them. The applications can be in the precision instrument inspect, automotive repair, plumbing, construction, restoration and HVAC
| INDUSTRIAL ENDOSCOPE SPEC. | ||||
| Insertion Probe | ||||
| Model No. | HB37S | HB45S | HB60D （ dual-lens） | HB90D （ dual-lens） |
| Diameter | 3.7mm | 4.5mm | 6mm | 9mm |
| Direction of view | front ( 0 °） | front ( 0 °） | front+side view ( 0 ° & 90 °） |
front+side view ( 0 ° & 90 °） |
| Cable length | 1M, 1.5M， 3M, 6M | |||
| Probe Type | Flexible | semi flexible/ Flex- and stay |
semi flexible/ Flex- and stay |
semi flexible/ Flex- and stay |
| Articulation | NO | NO | NO | NO |
| Image sensor | CMOS 1/13'' chip | CMOS 1/9'' chip | CMOS 1/7''chip | CMOS 1/7'' chip |
| Resolution | 640 x480 pixel, 300000 pixel | |||
| Camera Lighting |
Micro LED with intensity adjustment 6 White LED |
Front：4 pcs LED side：1 pcs |
Front：4 pcs LED side：1 pcs |
|
| Brightness adjustment | Yes | |||
| Field of Viewing | 80° | 90° | 90° | 90° |
| Depth of field | 15-100mm | 15-100mm | 15-100mm (F) 3-90mm( S) |
15-100mm (F) 3-90mm( S) |
| waterproof | IP67 | |||
| Probe working temperature | -10°C to 50°C | |||
| Monitor | ||||
| • Display Size | 3.5”TFT LCD Monitor | |||
| • Video resolution & storage format | AVI (640x480) | |||
| • Photo resolution & storage format | JPEG (640*480) | |||
| • Frame Rotation | 180° Rotation & Mirror image | |||
| • freeze frame | YES | |||
| • Zoom | 4x Variable Digital Zoom | |||
| • Menu language | Traditional Chinese, Simplified Chinese,English，French, German, Spanish，Japanese， Russian |
|||
| • Interface | micro USB 2.0/ TV out/ TF card slot | |||
| • TV out | PAL& NTSC | |||
| • internal memory | NO | |||
| • external memory | TF Memory Card (Up to 32GB ) | |||
| • Power source | DC 5V | |||
| Battery | Rechargeable Li- Battery (3.7V) 2600MAH | |||
| • Battery Life (typical) | 5 hours | |||
